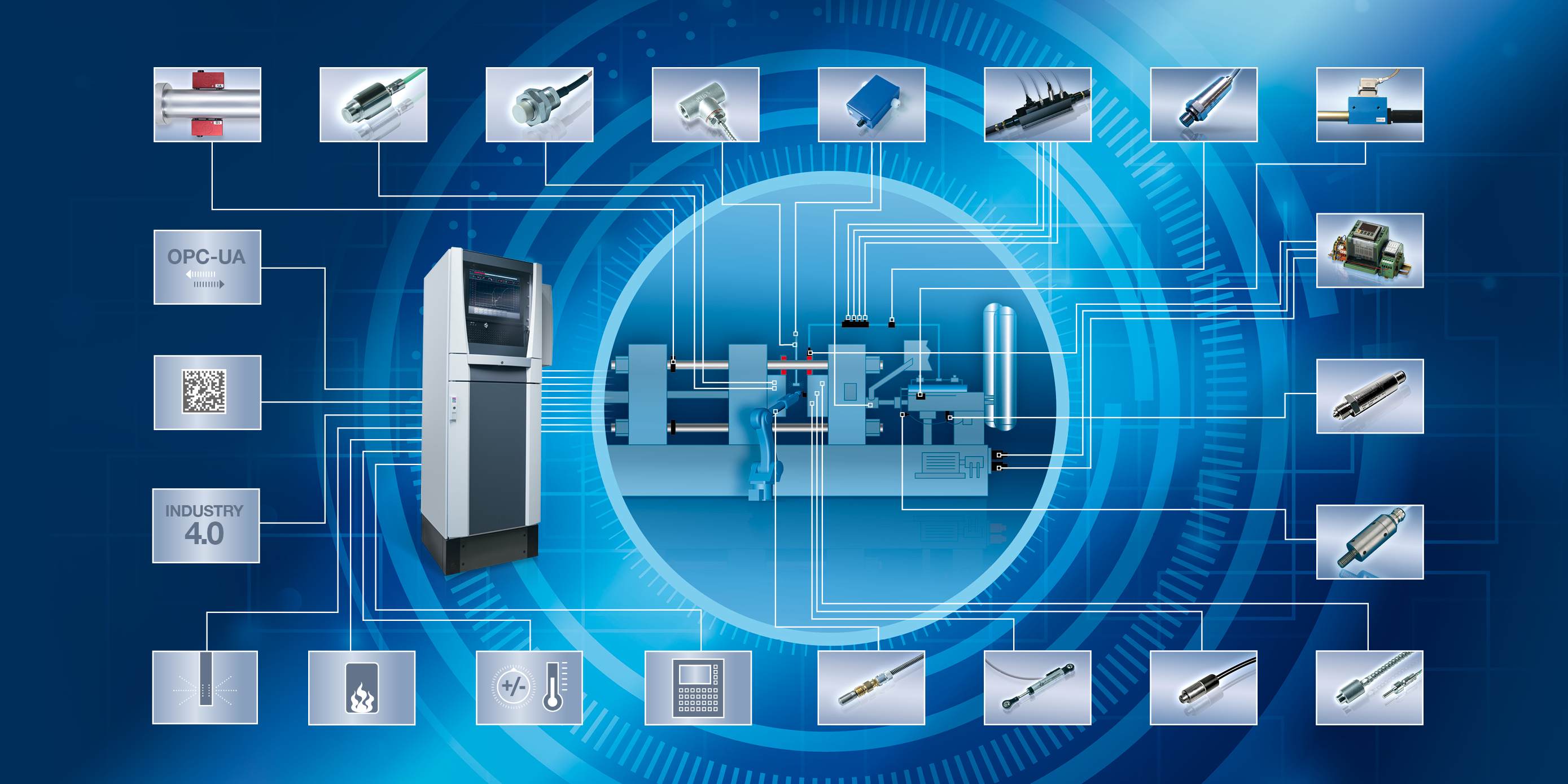

electronics Cast Quality Control measuring systems
Wireless column strain measurement
Cavity pressure sensor
Distance Sensor
Thermo-fluid sensor
Flow sensor
MASS – multi-air pipe sensor system
Vacuum sensor
Digital incremental position sensor system
Electronic coil speed
Hydraulic pressure sensor
Mould filling analysis sensor
Metal front temperature sensor
Metal front contact sensors
Displacement sensor for squeezer
Mould frame temperature sensor
Machine control (PLC)
There are standardised interfaces for data exchange for machines manufactured by
- IDRA
- Frech
- Bühler
- Italpresse
- DSD
- Schwaben Hydraulik
- Krista software
Heating/cooling devices
Standardised interfaces for data exchange via OPC-UA exist for many manufacturers.
Furnace
Standardised interfaces for data exchange via OPC-UA exist for many manufacturers.
Spraying systems
Standardised interfaces for data exchange via OPC-UA exist for many manufacturers.
Industry 4.0 • Foundry digitalisation
Marking systems
CQC measuring systems can be connected to a marking system directly or via the machine control.
For the traceability of the castings, information such as the production time and shot number is transmitted via this interface, as well as additional information that is written on the casting in the form of a matrix code.
OPC-UA
OPC-UA is an integral part of the CQC measuring systems.
The interface is used for communication with the casting cell and with tracing and data mining systems.
Industry 4.0 | ELECTRONICS measuring systems
Standardise your foundry with CQC. Industry 4.0 calls for standardised process parameter acquisition, independent of the machine manufacturer. The key to success in foundries.
ELECTRONICS CQC

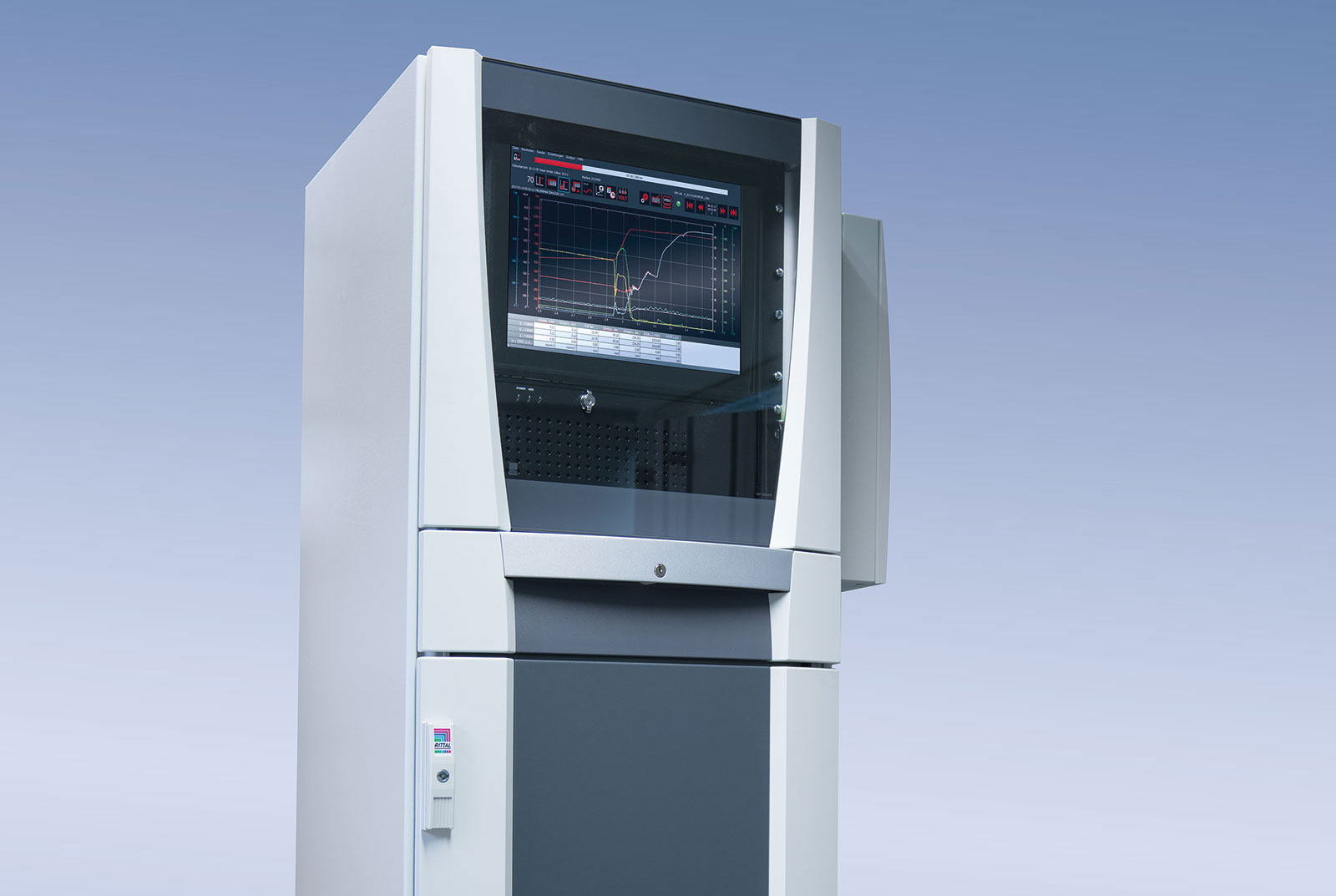

Process data measuring system for standardised process parameter acquisition independent of the machine manufacturer. Sensor networks and OPC interfaces to various peripherals.
ELECTRONICS sensors
Improve quality in the casting process with a range of sensors for process monitoring
